Description
The ideal mounting for our signs – for example made of acrylic glass or Aludibond. Made in Germany. Complete set for mounting a sign. The holders are attached from the side – so no holes need to be drilled in the signs. Diameter 15mm, wall distance 10mm, suitable for panel thickness 2.5-6mm. High-quality V2A stainless steel design.

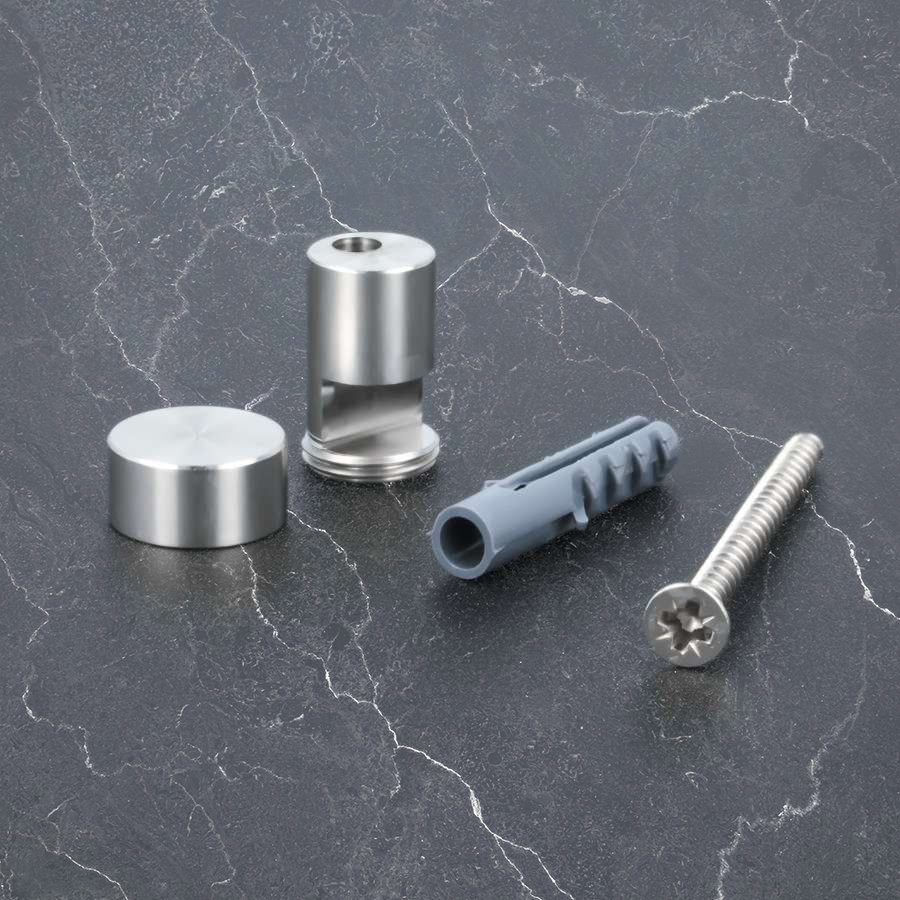

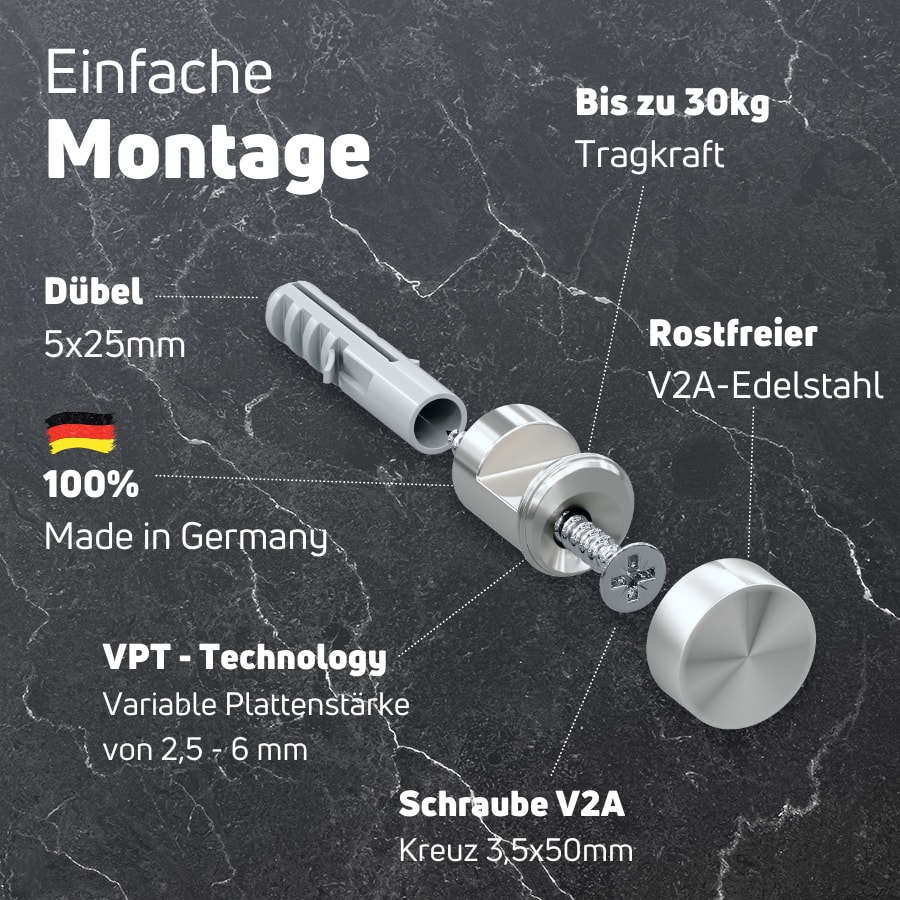

What we provide you with in this complete set (for one sign)
- 4x stainless steel threaded sleeve
- 4x stainless steel decorative cap
- 4x screw 3.5x50mm
- 4x dowels 5mm

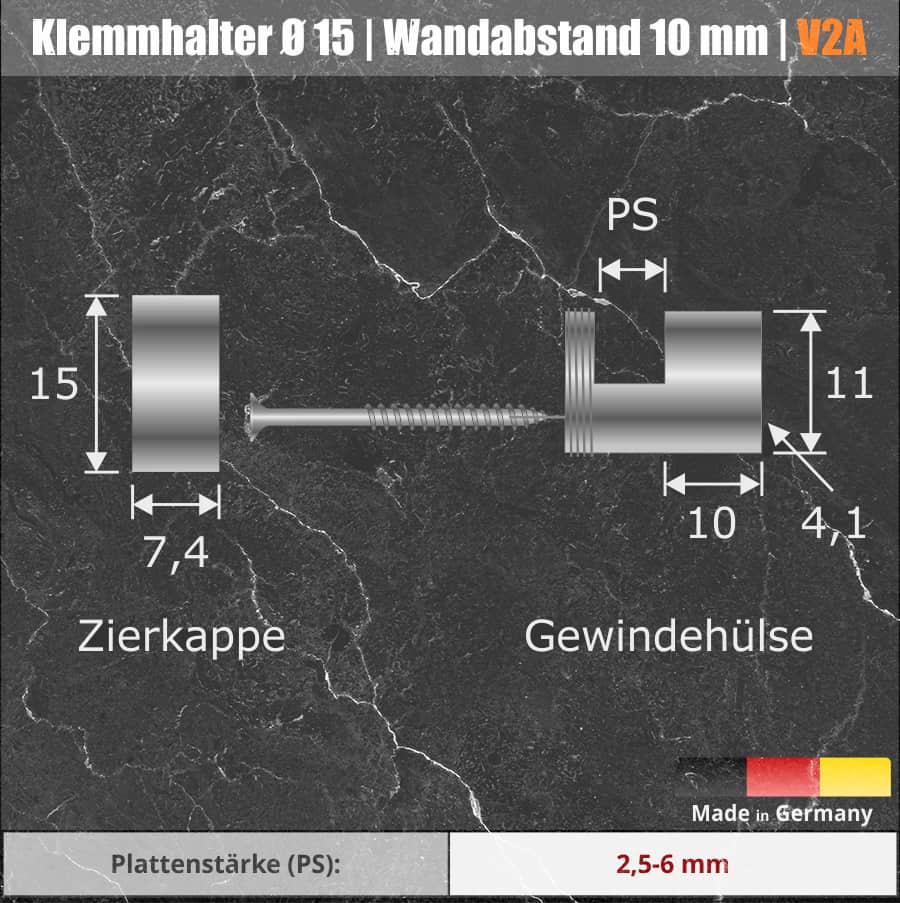

Product details
Details of the article: Decorative cap
Material: stainless steel V2A
Diameter (Ø): 15 mm
Head thickness (KS): 7.4 mm
Head shape (KF): flat

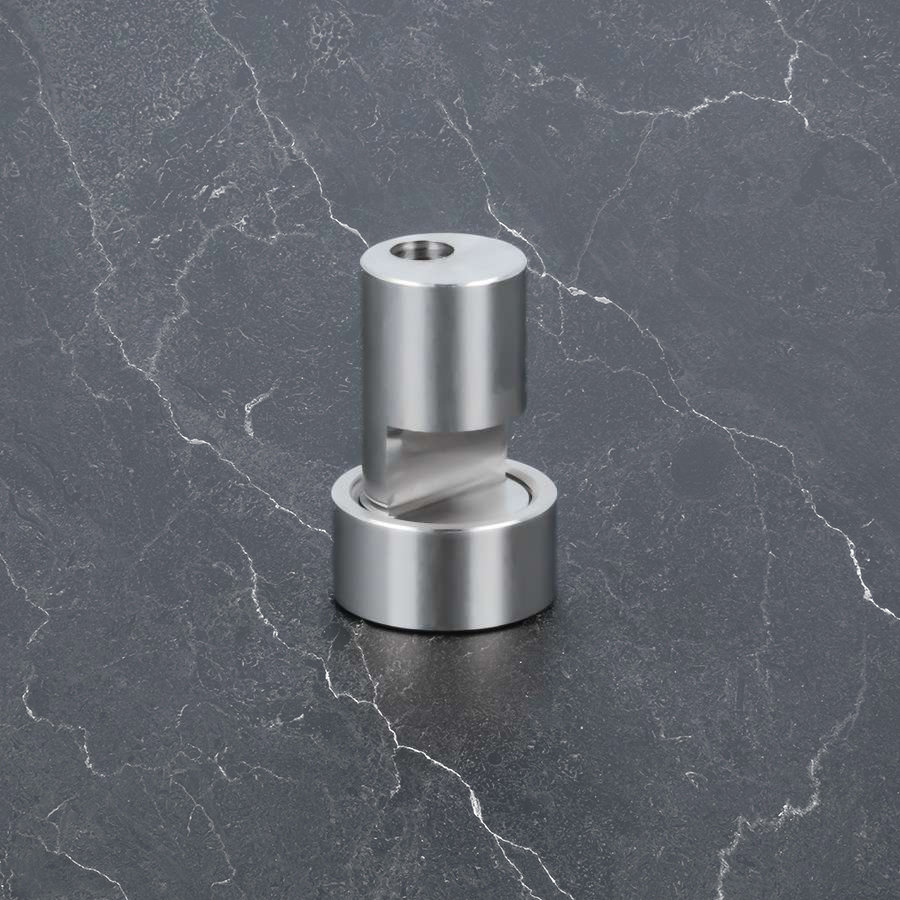

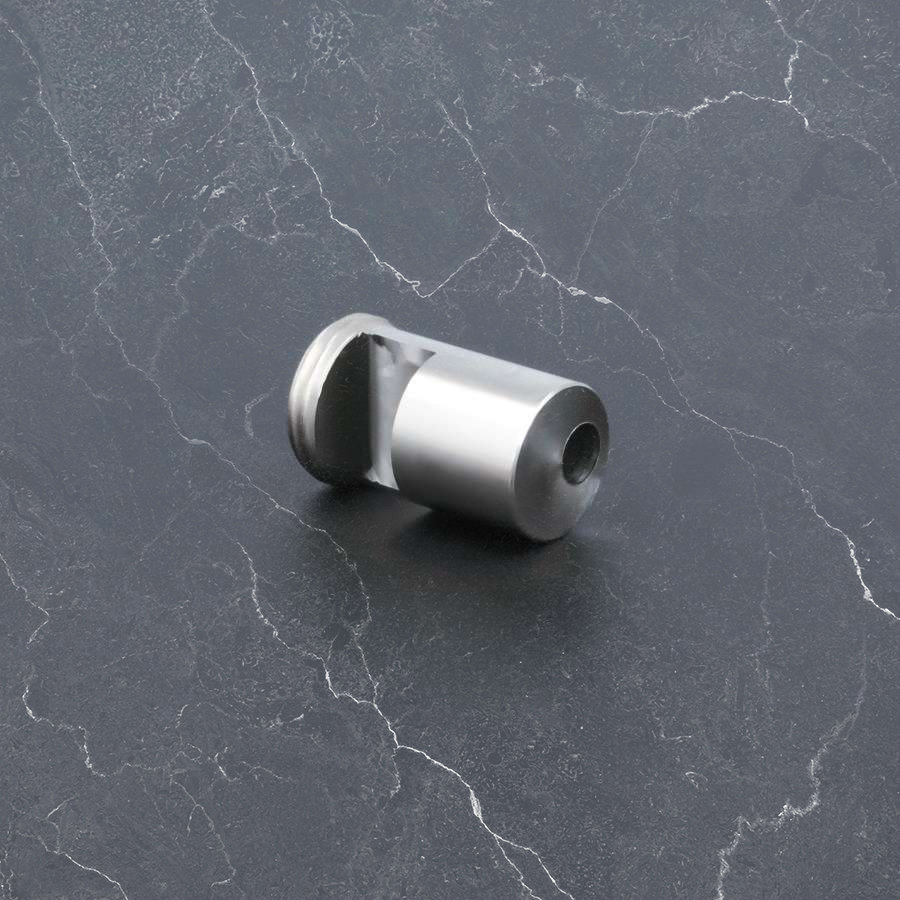

Details of the article: Threaded sleeve
Material: Stainless steel V2A
Diameter (Ø): M12 x 1 mm
Panel thickness: (PS): 2.5-6 mm
Hole Ø: 4.1 mm
Wall distance: 10 mm
Screw head Ø: 5.5 – 7 mm
Screw thread max.4 mm
Suitable for: mirrors, glass, Plexiglas, metal, Dibond and much more.
Load capacity: 30 kg
Application: outdoor | indoor
Photos show partly photo retouching / sample photos
